ZXUNO VGA 2M - Multi-Soft Core FPGA 8-Bit Console

$99.00


What is it?


The ZXUNO VGA 2M is an FPGA-based retro computer board built around the open-source ZX-Uno project. Its primary core is a cycle-accurate ZX Spectrum clone, but the platform supports a wide range of additional 8-bit computers and consoles with high fidelity emulation:



  • Amstrad CPC

  • SAM Coupé

  • Jupiter ACE

  • Apple II

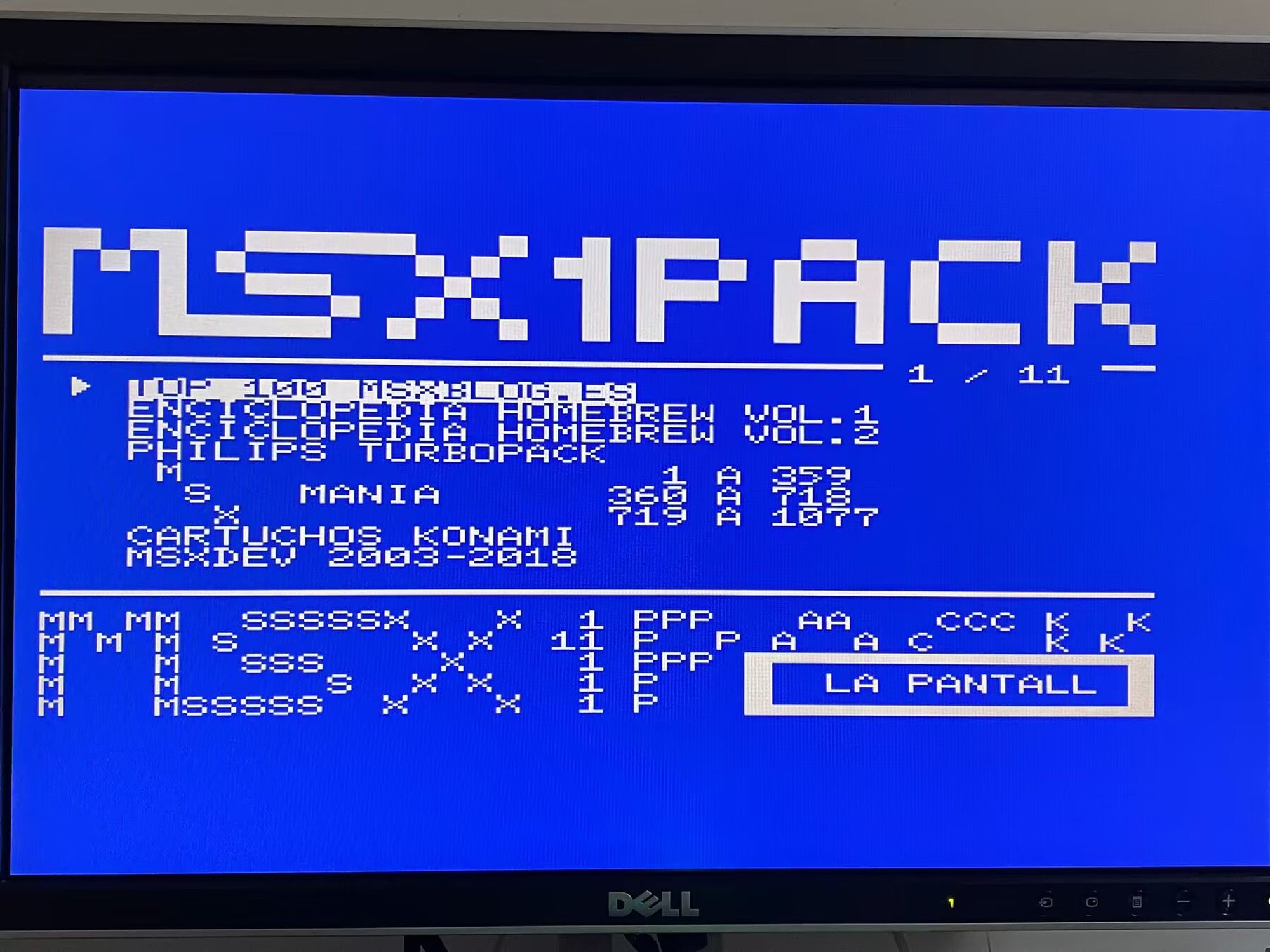

  • MSX1

  • VIC-20

  • Sega Master System

  • NES

  • ColecoVision

  • Atari 2600

  • Atari 800XL

  • Commodore 64

  • PC XT


Switch between machines by loading different cores — one board, a whole era of computing history.


What makes it special?



  • 2MB SRAM — expanded memory for demanding cores and larger software

  • W25Q128 Flash chip — 128Mbit flash for core and ROM storage

  • 2 joystick ports — ready for classic controllers out of the box

  • VGA and RGB native output — connect to modern monitors or retro CRTs

  • Multi-core FPGA platform — based on the well-established ZX-Uno open-source project with an active community

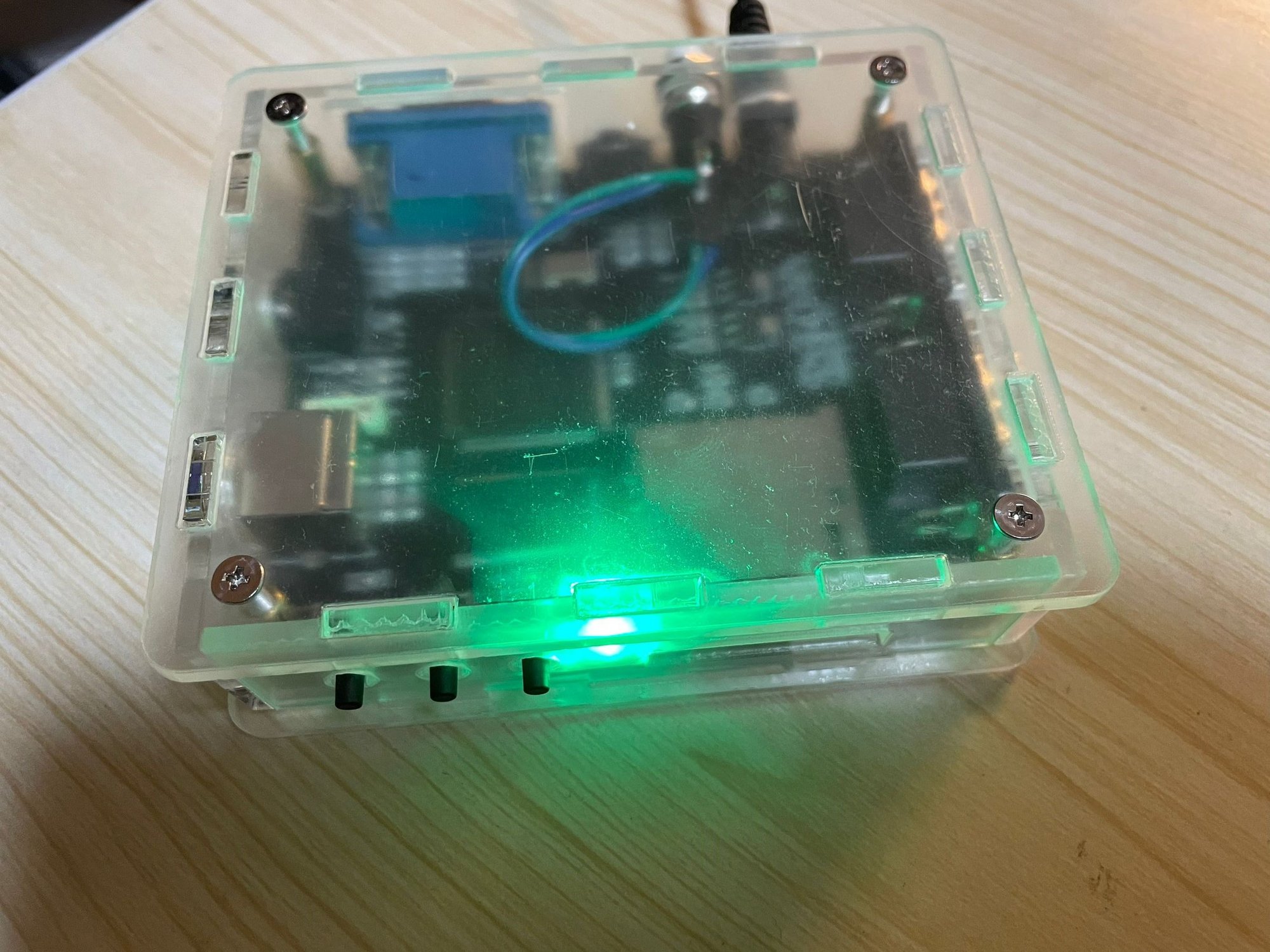

  • Optional acrylic shell — clean enclosure for desktop use


Options Available



  • Shell: Acrylic shell / None
