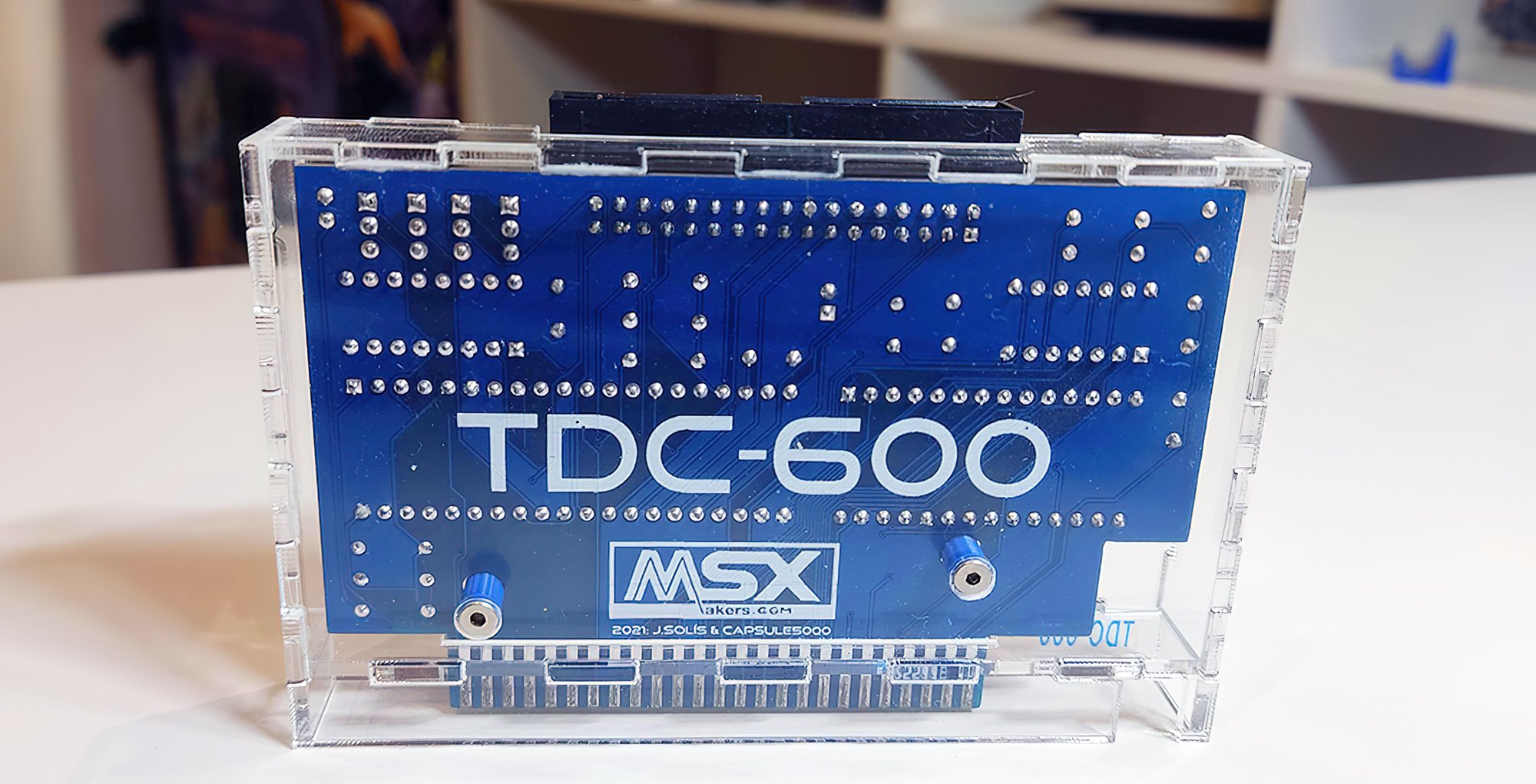

Image 1 of TDC-600 - MSX 360/720Kb Floppy Controller

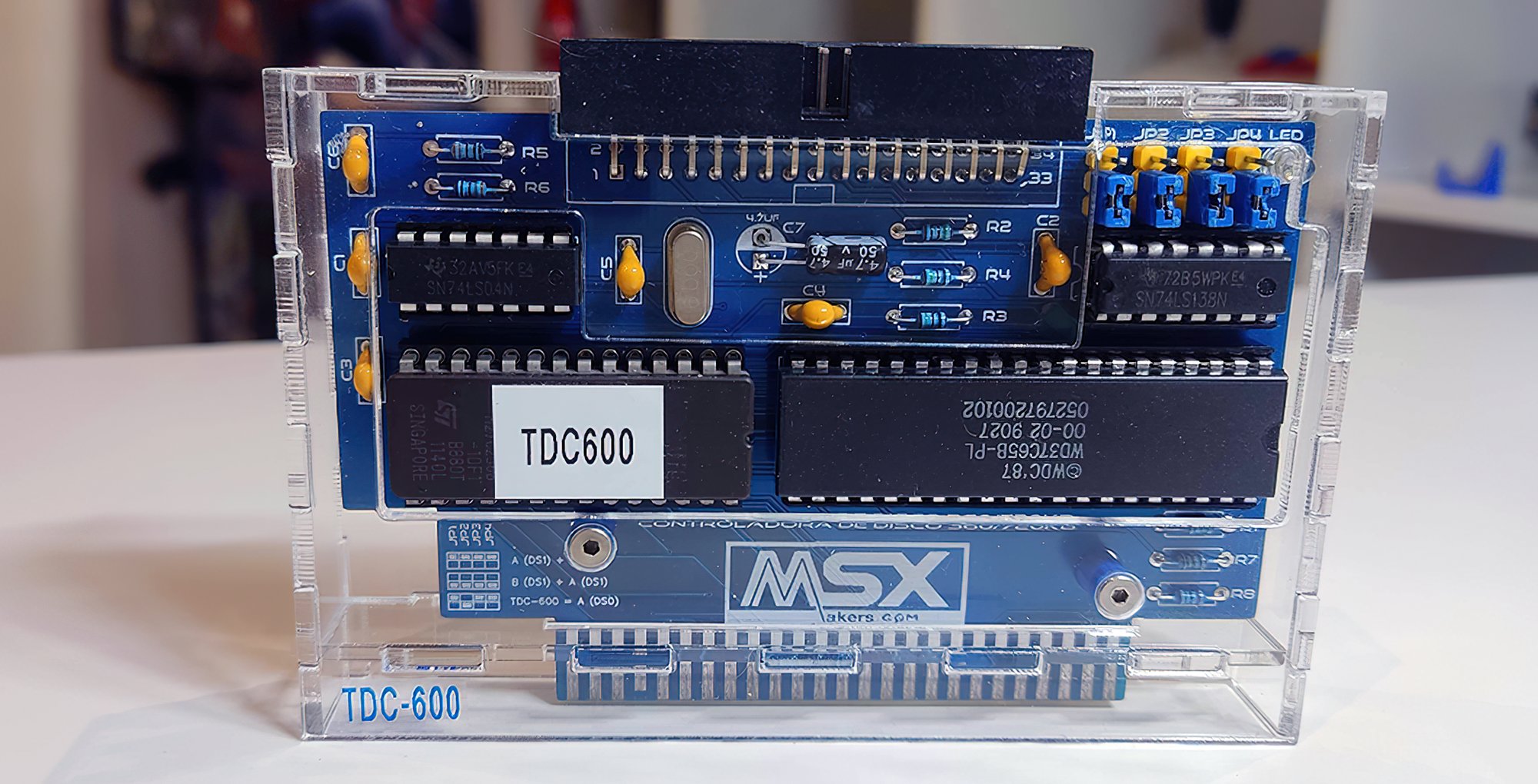

Image 2 of TDC-600 - MSX 360/720Kb Floppy Controller

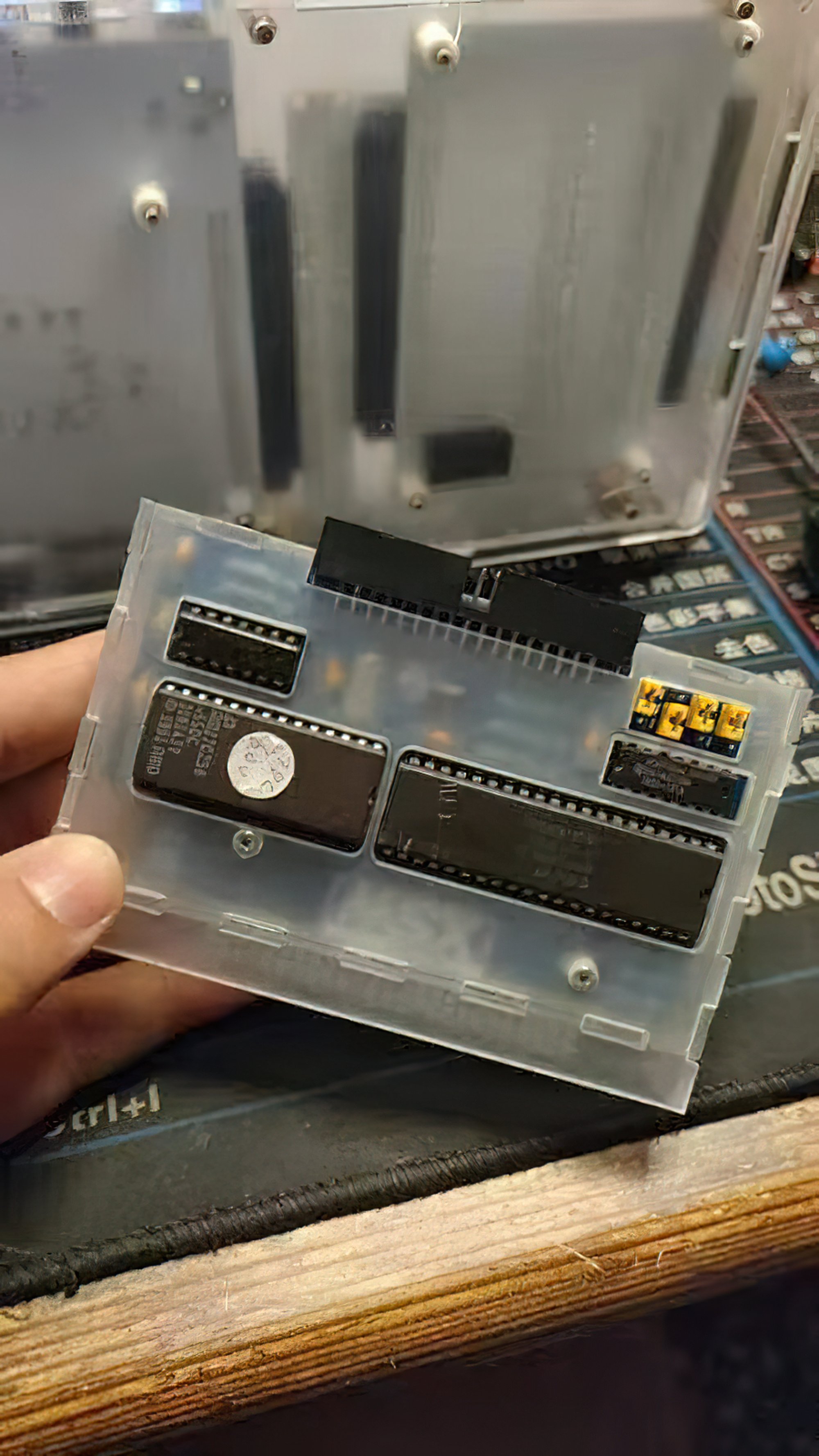

Image 3 of TDC-600 - MSX 360/720Kb Floppy Controller
1 of 3
On sale

TDC-600 - MSX 360/720Kb Floppy Controller

$59.00


🎬 Watch the Demo Video: TDC-600 Demo on YouTube

What is it?

The TDC-600 is a 360/720KB floppy disk controller for MSX computers. This is a clone of the original TDC-600 Telemática cartridge designed by Argentinian user Gustavo Iriarte (Ciro). Allows you to connect up to two 3.5-inch floppy drives using through-hole components for easy assembly.

Features a 2×25 female connector for the Talent/Daewoo expansion bus, retaining the box connector on compatible models. Configuration pins allow use with DS1 (PC) or DS0 (MSX) drives.

What makes it special?

  • Clone of the rare original TDC-600 — low number of originals available
  • Supports Gotek FlashFloppy USB floppy emulator
  • Connect up to 2 floppy drives (360KB or 720KB)
  • Compatible with DS0 (MSX) and DS1 (PC) drives via config pins
  • Talent/Daewoo expansion bus connector included
  • Reliable operation, low price
  • Available with acrylic case
