YMF276 MegaMod - OPN2 with External 16-bit DAC
What is it?

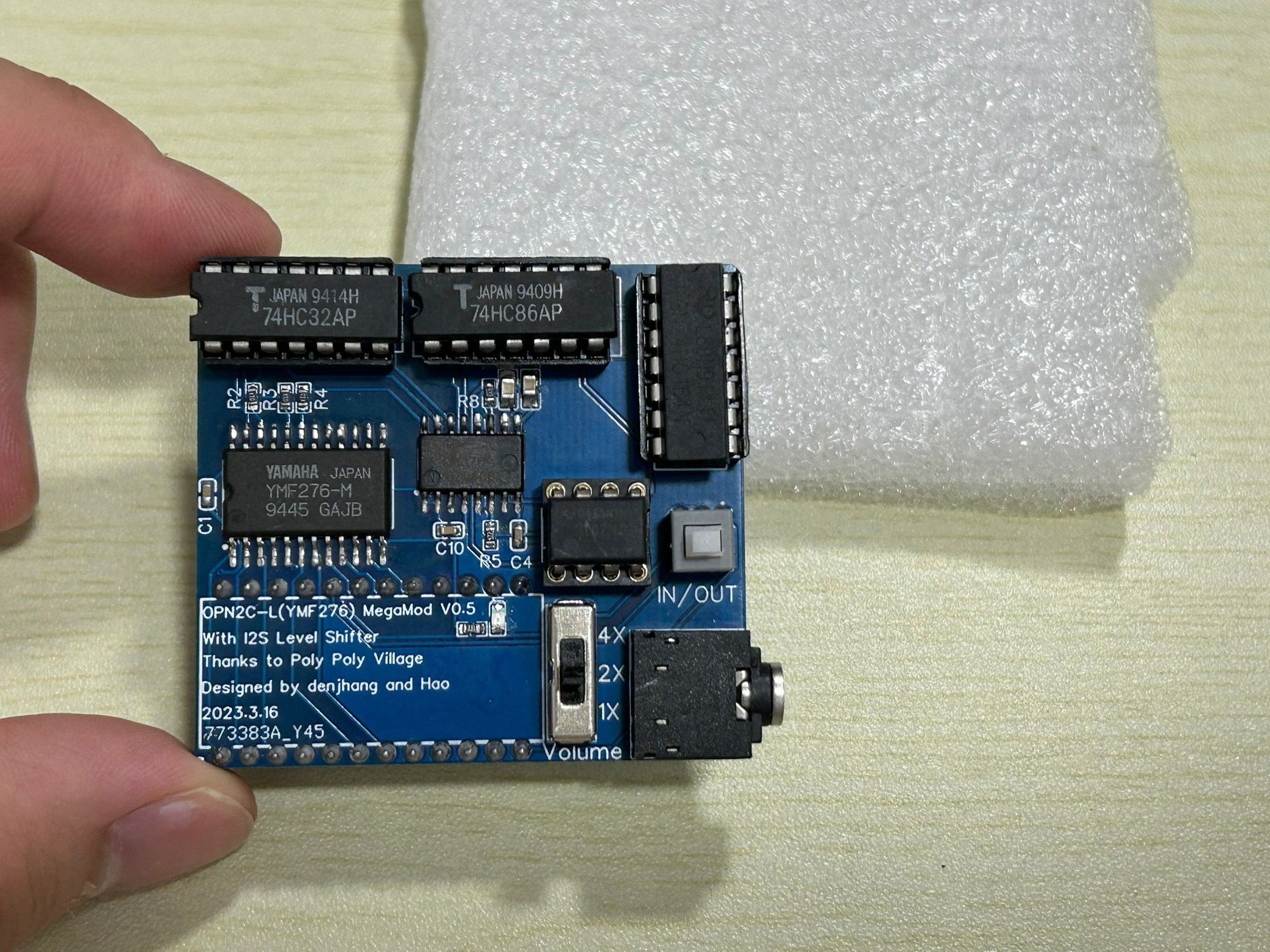

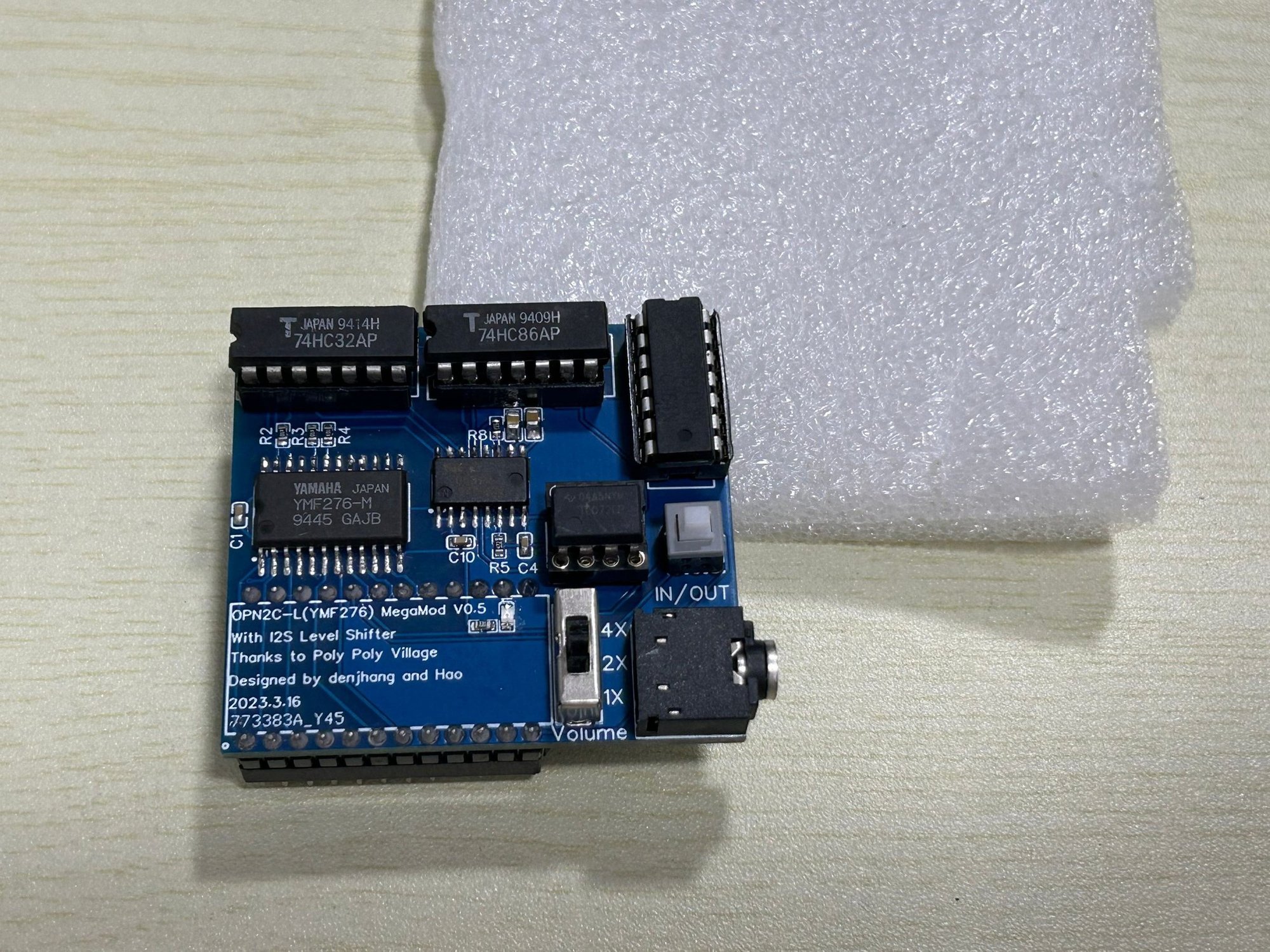

The YMF276 MegaMod is an OPN2-compatible FM sound module built around the YMF276 chip — Yamaha's OPN2C-L, an upgraded CMOS-process successor to the classic YM2612/YM3438. Unlike its predecessors, the YMF276 supports a universal I2S external 16-bit audio DAC, delivering dramatically improved sound quality over the original 9-bit internal DAC found in OPN2/OPN2C chips.

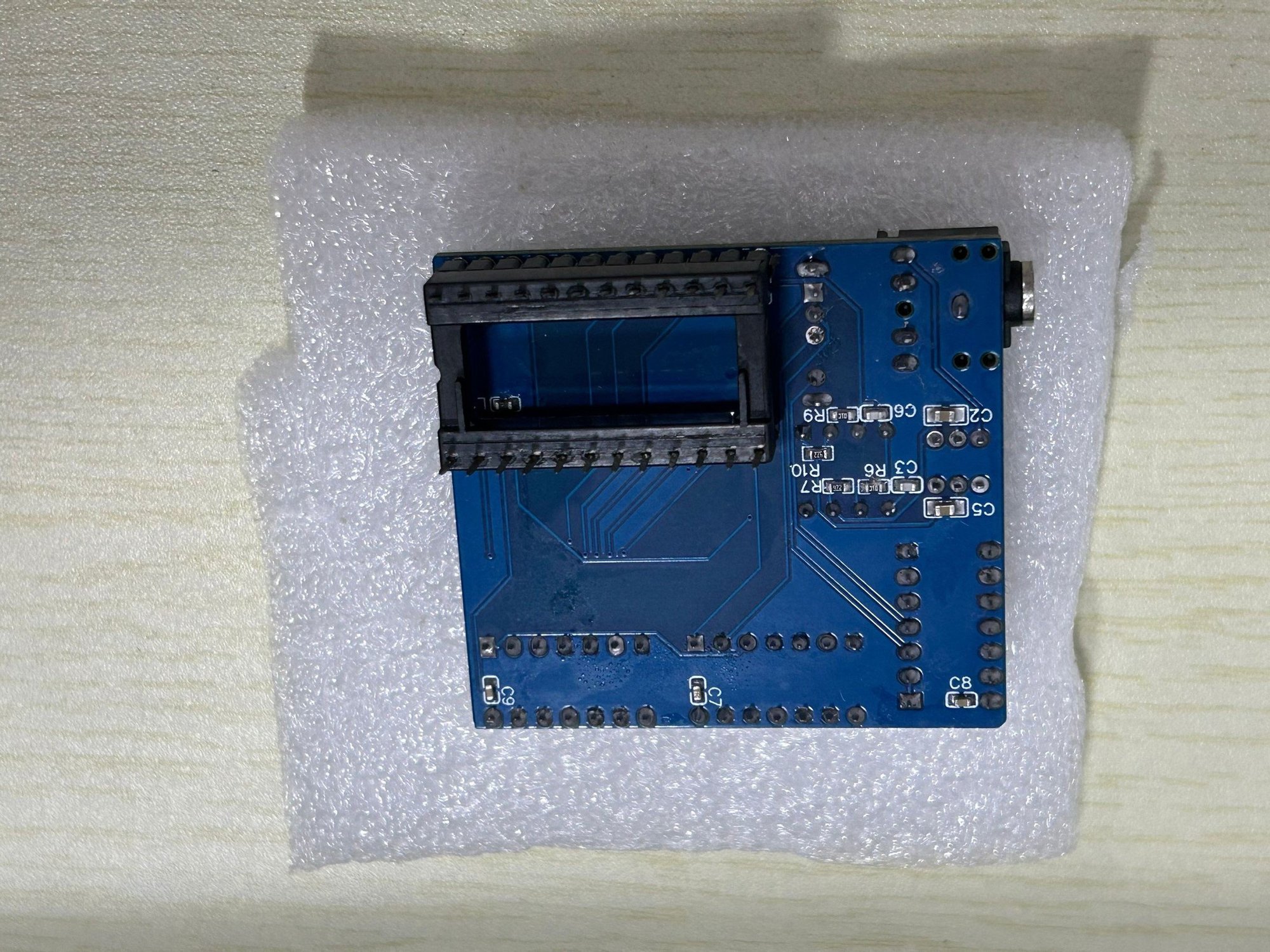

Designed as a drop-in compatible module for OPN2 sockets, it can be directly plugged in without any identification bit modification, and also supports Mega Drive/Genesis music playback alongside the SN76489.
Why Was It Made?
After acquiring hundreds of YMF276 chips in 2021, a dedicated piece of hardware was needed to properly test and utilize them. The YMF276 MegaMod became the earliest MegaMod design — born out of necessity, refined through experience. Its direct OPN2 socket compatibility made it an instant favorite for Mega Drive music enthusiasts.
What Makes It Special?
The latest version incorporates a proven I2S audio shifter that enables lossless digital volume amplification. This solves a long-standing problem with OPN2/OPN2C chips: their built-in 9-bit DAC produces audible step noise at low volumes, making FM Towns music — which is often recorded at much lower levels than MD/Genesis — sound poor when played through a YM2612 or YM3438.
With the YMF276 and its 16-bit external DAC, this problem is completely eliminated. You get clean, full-dynamic-range audio at any volume level.
Key Features
- YMF276 (OPN2C-L) — CMOS upgraded successor to YM2612/YM3438
- External I2S 16-bit DAC for lossless, high-quality audio output
- I2S audio shifter for lossless digital volume amplification
- Direct drop-in compatible with OPN2 sockets — no identification bit required
- Supports Mega Drive/Genesis music playback with SN76489
- Eliminates step noise issues present in 9-bit OPN2/OPN2C DACs
- Ideal for FM Towns, Mega Drive, and OPN2-based music playback
- Open source hardware — schematics available on GitHub
Compatible Systems
- Mega Drive / Genesis (OPN2 socket drop-in)
- FM Towns (via SPFM/MegaMod host)
- Any OPN2-compatible SPFM host board
Open Source
The full hardware design is open source and available on GitHub: github.com/denjhang/YMF276-MegaMod-2023
